Introduction
In the demanding world of aerospace, defense, and millimeter-wave communications, material reliability and performance are non-negotiable. TFA294 from Taizhou Wangling Insulation Material Factory is a premium PTFE ceramic composite dielectric substrate that delivers aerospace-grade reliability with exceptional electrical and thermal performance. Part of the broader TFA series—which includes Dk options of 2.94, 3.0, 6.15, and 10.2—TFA294 is engineered to replace similar high-performance materials from Western suppliers while offering superior frequency stability up to 77 GHz and beyond.
![]()
Unlike traditional PTFE/woven fiberglass materials, TFA series substrates utilize a novel ceramic-filled PTFE construction without glass fiber cloth. This eliminates the "fiberglass effect" on electromagnetic wave propagation, resulting in ultra-low dielectric loss, minimized anisotropy, and exceptional frequency stability—making it ideal for the most demanding millimeter-wave and aerospace applications.
This article provides a comprehensive overview of TFA294 laminate properties, a detailed 2-layer PCB design example, and key sourcing information for engineers and procurement professionals.
What Is TFA294 Laminate?
TFA294 is a PTFE (polytetrafluoroethylene) and ceramic composite dielectric substrate from the TFA series manufactured by Taizhou Wangling Insulation Material Factory. The material is produced using an advanced process that does not rely on traditional glass fiber cloth impregnation. Instead, it utilizes a proprietary prefabricated sheet process combined with specialized lamination techniques.
Key Differentiator: No Glass Fiber Cloth
The TFA series substrates contain no glass fiber cloth (except when dielectric thickness exceeds 1.5mm, where a minimal amount is added for structural support). Instead, uniformly distributed specialty nano-ceramics are mixed with PTFE resin. This unique construction offers:
No "fiberglass effect" – Electromagnetic waves propagate without the dielectric anisotropy caused by woven glass fibers
Excellent frequency stability – Consistent performance from low frequencies to 77 GHz and beyond
Ultra-low dielectric loss – Among the lowest in its Dk class
Minimized X/Y/Z anisotropy – Truly isotropic electrical properties
Aerospace-Grade Reliability
TFA294 is specifically designed for aerospace and defense applications, featuring:
Outstanding radiation resistance – Stable electrical and physical properties after irradiation exposure
Low outgassing – Meets vacuum outgassing requirements for space applications
CTE matched to copper – Ensures plated-through-hole reliability and dimensional stability
Wide operating temperature range – -55°C to +260°C
Properties of TFA294 Laminate
| Property | Test Condition | Units | Typical Value |
| Electrical Properties | |||
| Dielectric Constant (Typical) | 10 GHz | – | 2.94 |
| Dielectric Constant (Design) | 10 GHz | – | 2.94 |
| Dielectric Constant Tolerance | – | – | ±0.04 |
| Dissipation Factor | 10 GHz | – | 0.001 |
| 20 GHz | – | 0.001 | |
| 40 GHz | – | 0.0012 | |
| Temperature Coefficient of Dk (TCDk) | -55°C to 150°C | ppm/°C | -5 |
| Peel Strength (1 oz RTF Copper) | – | N/mm | >1.6 |
| Volume Resistivity | Normal | MΩ·cm | ≥5 × 10⁷ |
| Surface Resistivity | Normal | MΩ | ≥5 × 10⁷ |
| Electrical Strength (Z-direction) | – | kV/mm | >35 |
| Breakdown Voltage (XY-direction) | – | kV | >40 |
| Thermal Properties | |||
| CTE (X-axis) | -55°C to 288°C | ppm/°C | 18 |
| CTE (Y-axis) | -55°C to 288°C | ppm/°C | 18 |
| CTE (Z-axis) | -55°C to 288°C | ppm/°C | 32 |
| Thermal Stress | 260°C, 10s, 3 cycles | – | No delamination |
| Thermal Conductivity | Z-direction | W/(m·K) | 0.59 |
| Thermal Decomposition (Td) | Onset | °C | 498 |
| Long-Term Operating Temperature | – | °C | -55 to +260 |
| Mechanical & Physical Properties | |||
| Moisture Absorption | 20±2°C, 24 hours | % | 0.03 |
| Density | Room temperature | g/cm³ | 2.14 |
| Flammability | – | UL-94 | V-0 |
| Material Composition | – | – | PTFE + Ceramic |
Test Methods:
Dielectric Constant (Typical): GB/T 12636-1990 or IPC-TM-650 2.5.5.5 (Stripline method, Z-direction)
Dielectric Constant (Design): 50Ω Microstrip line method, Z-direction
Other properties: IPC-TM-650 or GBT4722-2017
Notes:
All values are typical measurement data intended to assist in material selection
For dielectric thicknesses exceeding 1.5mm, a minimal amount of glass fiber cloth is added
Data does not constitute express or implied warranties; users should verify suitability for each application
Exceptional Frequency Stability (0.5 GHz – 40 GHz+)
TFA294 exhibits outstanding frequency stability across a wide range. Testing via the stripline method from 0.5 GHz to 40 GHz shows:
Stable dielectric constant – Dk remains constant across the frequency range
Ultra-low loss across all frequencies – Df of 0.0010 at 10 GHz and 20 GHz; 0.0012 at 40 GHz
Extends to 77 GHz – While testing methods are limited to 40 GHz, the material's excellent properties extend to millimeter-wave frequencies up to 77 GHz and beyond, making it ideal for automotive radar and 5G/6G applications
Excellent Temperature Stability (-55°C to 150°C)
TFA294 demonstrates exceptional temperature stability with:
TCDk of approximately -5 ppm/°C – One of the lowest in its class, ensuring minimal dielectric constant variation across temperature
Stable phase performance – Critical for phase-sensitive applications such as phased-array antennas and beamforming networks
Usable temperature range far exceeds 150°C – Practical operating range extends well beyond the tested range
Features and Benefits Summary
| Feature | Benefit |
| No glass fiber cloth | No "fiberglass effect"; isotropic electrical properties; minimal anisotropy |
| Dk of 2.94 ± 0.04 | Tight tolerance; excellent lot-to-lot consistency |
| Ultra-low Df (0.0010 @ 10 GHz) | Lowest dielectric loss in its Dk class; excellent signal integrity |
| Frequency stability to 77 GHz | Suitable for millimeter-wave and automotive radar applications |
| TCDk of -5 ppm/°C | Excellent phase stability across temperature (-55°C to 150°C) |
| CTE matched to copper (18/18/32 ppm/°C) | Reliable plated-through-holes; excellent dimensional stability |
| Radiation resistance | Stable performance after irradiation exposure; space-qualified |
| Low outgassing | Meets vacuum outgassing requirements for space applications |
| Low moisture absorption (0.03%) | Stable performance in humid environments |
| Long-term operating temperature (-55°C to +260°C) | Suitable for extreme environments |
| UL 94 V-0 flammability | Safety certified for critical applications |
| Standard PTFE processing | Compatible with standard PTFE PCB fabrication techniques |
Standard Offerings
TFA294 and the broader TFA series are available in a wide range of thicknesses, panel sizes, and copper cladding options.
| Thickness (mm) | Thickness (mil) | Tolerance (mm) | Tolerance (mil) |
| 0.127 | 5 | ±0.0127 | ±0.5 |
| 0.254 | 10 | ±0.02 | ±1.0 |
| 0.508 | 20 | ±0.03 | ±1.19 |
| 0.635 | 25 | ±0.03 | ±1.58 |
| 0.762 | 30 | ±0.04 | ±1.58 |
| 1.016 | 40 | ±0.05 | ±2.0 |
| 1.27 | 50 | ±0.05 | ±2.0 |
| 1.524 | 60 | ±0.07 | ±2.5 |
| 1.905 | 75 | ±0.09 | ±3.5 |
| 2.03 | 80 | ±0.09 | ±3.5 |
| 2.54 | 100 | ±0.13 | ±5.0 |
| 3.175 | 125 | ±0.20 | ±8.0 |
| 3.81 | 150 | ±0.25 | ±10.0 |
| 4.06 | 160 | ±0.25 | ±10.0 |
| 5.08 | 200 | ±0.25 | ±10.0 |
| 6.35 | 250 | ±0.32 | ±12.6 |
Standard Panel Sizes & Copper Claddings
| Parameter | Options |
| Standard Panel Sizes | 305 × 460 mm (12" × 18") |
| 460 × 610 mm (18" × 24") | |
| Custom sizes available | |
| Copper Thickness | 0.5 oz (18 μm) – standard |
| 1.0 oz (35 μm) – standard | |
| Other thicknesses available upon request | |
| Copper Foil Types | RTF – Low-roughness copper (standard) |
| Rolled copper foil | |
| 50Ω Embedded Resistor Copper Foil (NiP alloy, 0.2μm thickness, 50±5Ω/sq) | |
| Copper-clad or aluminum-clad versions available |
Metal-Backed Options (TFA294-AL / TFA294-CU)
TFA series also offers metal-backed versions for shielding or heat dissipation applications:
| Model | Metal Base | Density (g/cm³) | Thermal Conductivity (W/m·K) | CTE (ppm/°C) | Available Metal Thickness (mm) | Panel Size (mm) |
| TFA294-CU | Copper | 8.9 | 380 | 17 | 0.48, 0.98, 1.48, 1.98, 2.98, 3.98 | 460 × 610 |
| TFA294-AL | Aluminum | 2.7 | 180 | 24 | 460 × 305 |
Part Number Example
TFA294-AL = TFA294 with aluminum backing
TFA294-CU = TFA294 with copper backing

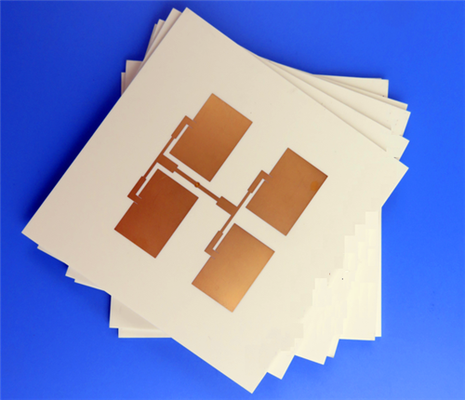

2-Layer PCB Design Example Using TFA294
To demonstrate the practical application of TFA294, the following is a complete 2-layer rigid PCB design case.
![]()
PCB Design Specifications
| Parameter | Options |
| Standard Panel Sizes | 305 × 460 mm (12" × 18") |
| 460 × 610 mm (18" × 24") | |
| Custom sizes available | |
| Copper Thickness | 0.5 oz (18 μm) – standard |
| 1.0 oz (35 μm) – standard | |
| Other thicknesses available upon request | |
| Copper Foil Types | RTF – Low-roughness copper (standard) |
| Rolled copper foil | |
| 50Ω Embedded Resistor Copper Foil (NiP alloy, 0.2μm thickness, 50±5Ω/sq) | |
| Copper-clad or aluminum-clad versions available | |
| UL 94 V-0 flammability | Safety certified for critical applications |
| Standard PTFE processing | Compatible with standard PTFE PCB fabrication techniques |
| Bottom Solder Mask | None |
| Electrical Testing | 100% prior to shipment |
| Artwork Format | Gerber RS-274-X |
| Accepted Standard | IPC-Class-2 |
| Service Area | Worldwide |
Design Observations
This board (97.53 mm × 100.28 mm) features a moderate component count (21 components) with only 2 nets, suggesting a dedicated RF functional module. Key observations include:
40 mil (1.016 mm) dielectric thickness – Provides robust mechanical strength while maintaining controlled impedance characteristics
No solder mask – Preserves the ultra-low-loss characteristics of TFA294; solder mask would introduce additional dielectric loss
No silkscreen – Maintains a clean RF surface; avoids contamination
ENIG surface finish – Provides excellent solderability and flatness for RF connections
TFA294's low loss (Df ≈ 0.0010) – Critical for maintaining signal integrity at high frequencies
IPC-Class-2 compliance – Ensures reliability for commercial aerospace and defense applications
Manufacturing Process Highlights
Standard PTFE processing – TFA294 can be fabricated using standard PTFE PCB techniques
Excellent machinability – The material's mechanical properties support dense-hole and fine-line processing
Multi-layer capability – Suitable for multi-layer and backplane applications
100% electrical testing – Guarantees functional integrity of every board
Typical Applications
- Aerospace equipment, space, in-cabin equipment, aircraft;
- Microwaves, antennas, phase-sensitive antennas;
- Early warning radars, airborne radars, etc.;
- Phased array antennas, beamforming networks;
- Satellite communications, navigation;
- Power amplifiers.
TFA Series Product Family
TFA294 is part of a broader product family offering multiple Dk options:
| Model | Dielectric Constant (Dk) | Primary Application |
| TFA294 | 2.94 | General high-frequency, millimeter-wave, aerospace |
| TFA300 | 3 | High-frequency, antenna applications |
| TFA615 | 6.15 | Miniaturization, filters, couplers |
| TFA1020 | 10.2 | Extreme miniaturization, compact microwave components |
Note: TFA294 and TFA300 can be supplied with 50Ω embedded resistor copper foil for integrated resistor applications.
Conclusion
TFA294 from Taizhou Wangling Insulation Material Factory offers a compelling combination of aerospace-grade reliability, ultra-low loss, and exceptional frequency stability up to 77 GHz and beyond. With a dielectric constant of 2.94 ± 0.04, dissipation factor of 0.0010 at 10 GHz, and a TCDk of -5 ppm/°C, TFA294 delivers the performance required for the most demanding millimeter-wave, aerospace, and defense applications.
Key advantages include:
Aerospace-grade reliability – Radiation resistant, low outgassing, space-qualified
Ultra-low loss (Df = 0.0010) – Among the lowest in its Dk class
No glass fiber cloth – Eliminates "fiberglass effect"; isotropic electrical properties
77 GHz capability – Suitable for automotive radar and millimeter-wave communications
Excellent temperature stability – TCDk of -5 ppm/°C from -55°C to 150°C
CTE matched to copper (18/18/32 ppm/°C) – Reliable PTHs and dimensional stability
Low moisture absorption (0.03%) – Stable performance in all environments
Cost-effective alternative – Replaces similar Western materials with competitive pricing
Standard PTFE processing – Compatible with standard fabrication techniques
Whether used in spacecraft electronics, phased-array radar, or 77 GHz automotive sensors, TFA294 provides a reliable, high-performance foundation for the most demanding high-frequency circuit designs.
About Taizhou Wangling Insulation Material Factory
Taizhou Wangling Insulation Material Factory is an ISO 9001 registered company specializing in high-frequency PTFE ceramic composite substrates for aerospace, defense, and millimeter-wave applications. The TFA series represents the company's commitment to quality and performance, offering a competitive alternative to imported high-frequency materials.
TFA Series Product Offerings:
TFA294 (Dk 2.94) – General high-frequency, aerospace, millimeter-wave
TFA300 (Dk 3.0) – High-frequency, antenna applications
TFA615 (Dk 6.15) – Miniaturization, filters, couplers
TFA1020 (Dk 10.2) – Extreme miniaturization
Metal-Backed Options:
TFA294-AL – Aluminum-backed for heat dissipation
TFA294-CU – Copper-backed for shielding and thermal management
For detailed material certifications, custom thickness options, or panel size availability, please contact us -- an authorized TFA series distributor.
| Cuota De Producción: | 1 Uds. |
| Precio: | 0.99-99USD/PCS |
| Embalaje Estándar: | Embalaje |
| Período De Entrega: | 2-10 días laborables |
| Método De Pago: | T/T, Paypal |
| Capacidad De Suministro: | 50000PCS |
Introduction
In the demanding world of aerospace, defense, and millimeter-wave communications, material reliability and performance are non-negotiable. TFA294 from Taizhou Wangling Insulation Material Factory is a premium PTFE ceramic composite dielectric substrate that delivers aerospace-grade reliability with exceptional electrical and thermal performance. Part of the broader TFA series—which includes Dk options of 2.94, 3.0, 6.15, and 10.2—TFA294 is engineered to replace similar high-performance materials from Western suppliers while offering superior frequency stability up to 77 GHz and beyond.
![]()
Unlike traditional PTFE/woven fiberglass materials, TFA series substrates utilize a novel ceramic-filled PTFE construction without glass fiber cloth. This eliminates the "fiberglass effect" on electromagnetic wave propagation, resulting in ultra-low dielectric loss, minimized anisotropy, and exceptional frequency stability—making it ideal for the most demanding millimeter-wave and aerospace applications.
This article provides a comprehensive overview of TFA294 laminate properties, a detailed 2-layer PCB design example, and key sourcing information for engineers and procurement professionals.
What Is TFA294 Laminate?
TFA294 is a PTFE (polytetrafluoroethylene) and ceramic composite dielectric substrate from the TFA series manufactured by Taizhou Wangling Insulation Material Factory. The material is produced using an advanced process that does not rely on traditional glass fiber cloth impregnation. Instead, it utilizes a proprietary prefabricated sheet process combined with specialized lamination techniques.
Key Differentiator: No Glass Fiber Cloth
The TFA series substrates contain no glass fiber cloth (except when dielectric thickness exceeds 1.5mm, where a minimal amount is added for structural support). Instead, uniformly distributed specialty nano-ceramics are mixed with PTFE resin. This unique construction offers:
No "fiberglass effect" – Electromagnetic waves propagate without the dielectric anisotropy caused by woven glass fibers
Excellent frequency stability – Consistent performance from low frequencies to 77 GHz and beyond
Ultra-low dielectric loss – Among the lowest in its Dk class
Minimized X/Y/Z anisotropy – Truly isotropic electrical properties
Aerospace-Grade Reliability
TFA294 is specifically designed for aerospace and defense applications, featuring:
Outstanding radiation resistance – Stable electrical and physical properties after irradiation exposure
Low outgassing – Meets vacuum outgassing requirements for space applications
CTE matched to copper – Ensures plated-through-hole reliability and dimensional stability
Wide operating temperature range – -55°C to +260°C
Properties of TFA294 Laminate
| Property | Test Condition | Units | Typical Value |
| Electrical Properties | |||
| Dielectric Constant (Typical) | 10 GHz | – | 2.94 |
| Dielectric Constant (Design) | 10 GHz | – | 2.94 |
| Dielectric Constant Tolerance | – | – | ±0.04 |
| Dissipation Factor | 10 GHz | – | 0.001 |
| 20 GHz | – | 0.001 | |
| 40 GHz | – | 0.0012 | |
| Temperature Coefficient of Dk (TCDk) | -55°C to 150°C | ppm/°C | -5 |
| Peel Strength (1 oz RTF Copper) | – | N/mm | >1.6 |
| Volume Resistivity | Normal | MΩ·cm | ≥5 × 10⁷ |
| Surface Resistivity | Normal | MΩ | ≥5 × 10⁷ |
| Electrical Strength (Z-direction) | – | kV/mm | >35 |
| Breakdown Voltage (XY-direction) | – | kV | >40 |
| Thermal Properties | |||
| CTE (X-axis) | -55°C to 288°C | ppm/°C | 18 |
| CTE (Y-axis) | -55°C to 288°C | ppm/°C | 18 |
| CTE (Z-axis) | -55°C to 288°C | ppm/°C | 32 |
| Thermal Stress | 260°C, 10s, 3 cycles | – | No delamination |
| Thermal Conductivity | Z-direction | W/(m·K) | 0.59 |
| Thermal Decomposition (Td) | Onset | °C | 498 |
| Long-Term Operating Temperature | – | °C | -55 to +260 |
| Mechanical & Physical Properties | |||
| Moisture Absorption | 20±2°C, 24 hours | % | 0.03 |
| Density | Room temperature | g/cm³ | 2.14 |
| Flammability | – | UL-94 | V-0 |
| Material Composition | – | – | PTFE + Ceramic |
Test Methods:
Dielectric Constant (Typical): GB/T 12636-1990 or IPC-TM-650 2.5.5.5 (Stripline method, Z-direction)
Dielectric Constant (Design): 50Ω Microstrip line method, Z-direction
Other properties: IPC-TM-650 or GBT4722-2017
Notes:
All values are typical measurement data intended to assist in material selection
For dielectric thicknesses exceeding 1.5mm, a minimal amount of glass fiber cloth is added
Data does not constitute express or implied warranties; users should verify suitability for each application
Exceptional Frequency Stability (0.5 GHz – 40 GHz+)
TFA294 exhibits outstanding frequency stability across a wide range. Testing via the stripline method from 0.5 GHz to 40 GHz shows:
Stable dielectric constant – Dk remains constant across the frequency range
Ultra-low loss across all frequencies – Df of 0.0010 at 10 GHz and 20 GHz; 0.0012 at 40 GHz
Extends to 77 GHz – While testing methods are limited to 40 GHz, the material's excellent properties extend to millimeter-wave frequencies up to 77 GHz and beyond, making it ideal for automotive radar and 5G/6G applications
Excellent Temperature Stability (-55°C to 150°C)
TFA294 demonstrates exceptional temperature stability with:
TCDk of approximately -5 ppm/°C – One of the lowest in its class, ensuring minimal dielectric constant variation across temperature
Stable phase performance – Critical for phase-sensitive applications such as phased-array antennas and beamforming networks
Usable temperature range far exceeds 150°C – Practical operating range extends well beyond the tested range
Features and Benefits Summary
| Feature | Benefit |
| No glass fiber cloth | No "fiberglass effect"; isotropic electrical properties; minimal anisotropy |
| Dk of 2.94 ± 0.04 | Tight tolerance; excellent lot-to-lot consistency |
| Ultra-low Df (0.0010 @ 10 GHz) | Lowest dielectric loss in its Dk class; excellent signal integrity |
| Frequency stability to 77 GHz | Suitable for millimeter-wave and automotive radar applications |
| TCDk of -5 ppm/°C | Excellent phase stability across temperature (-55°C to 150°C) |
| CTE matched to copper (18/18/32 ppm/°C) | Reliable plated-through-holes; excellent dimensional stability |
| Radiation resistance | Stable performance after irradiation exposure; space-qualified |
| Low outgassing | Meets vacuum outgassing requirements for space applications |
| Low moisture absorption (0.03%) | Stable performance in humid environments |
| Long-term operating temperature (-55°C to +260°C) | Suitable for extreme environments |
| UL 94 V-0 flammability | Safety certified for critical applications |
| Standard PTFE processing | Compatible with standard PTFE PCB fabrication techniques |
Standard Offerings
TFA294 and the broader TFA series are available in a wide range of thicknesses, panel sizes, and copper cladding options.
| Thickness (mm) | Thickness (mil) | Tolerance (mm) | Tolerance (mil) |
| 0.127 | 5 | ±0.0127 | ±0.5 |
| 0.254 | 10 | ±0.02 | ±1.0 |
| 0.508 | 20 | ±0.03 | ±1.19 |
| 0.635 | 25 | ±0.03 | ±1.58 |
| 0.762 | 30 | ±0.04 | ±1.58 |
| 1.016 | 40 | ±0.05 | ±2.0 |
| 1.27 | 50 | ±0.05 | ±2.0 |
| 1.524 | 60 | ±0.07 | ±2.5 |
| 1.905 | 75 | ±0.09 | ±3.5 |
| 2.03 | 80 | ±0.09 | ±3.5 |
| 2.54 | 100 | ±0.13 | ±5.0 |
| 3.175 | 125 | ±0.20 | ±8.0 |
| 3.81 | 150 | ±0.25 | ±10.0 |
| 4.06 | 160 | ±0.25 | ±10.0 |
| 5.08 | 200 | ±0.25 | ±10.0 |
| 6.35 | 250 | ±0.32 | ±12.6 |
Standard Panel Sizes & Copper Claddings
| Parameter | Options |
| Standard Panel Sizes | 305 × 460 mm (12" × 18") |
| 460 × 610 mm (18" × 24") | |
| Custom sizes available | |
| Copper Thickness | 0.5 oz (18 μm) – standard |
| 1.0 oz (35 μm) – standard | |
| Other thicknesses available upon request | |
| Copper Foil Types | RTF – Low-roughness copper (standard) |
| Rolled copper foil | |
| 50Ω Embedded Resistor Copper Foil (NiP alloy, 0.2μm thickness, 50±5Ω/sq) | |
| Copper-clad or aluminum-clad versions available |
Metal-Backed Options (TFA294-AL / TFA294-CU)
TFA series also offers metal-backed versions for shielding or heat dissipation applications:
| Model | Metal Base | Density (g/cm³) | Thermal Conductivity (W/m·K) | CTE (ppm/°C) | Available Metal Thickness (mm) | Panel Size (mm) |
| TFA294-CU | Copper | 8.9 | 380 | 17 | 0.48, 0.98, 1.48, 1.98, 2.98, 3.98 | 460 × 610 |
| TFA294-AL | Aluminum | 2.7 | 180 | 24 | 460 × 305 |
Part Number Example
TFA294-AL = TFA294 with aluminum backing
TFA294-CU = TFA294 with copper backing
2-Layer PCB Design Example Using TFA294
To demonstrate the practical application of TFA294, the following is a complete 2-layer rigid PCB design case.
![]()
PCB Design Specifications
| Parameter | Options |
| Standard Panel Sizes | 305 × 460 mm (12" × 18") |
| 460 × 610 mm (18" × 24") | |
| Custom sizes available | |
| Copper Thickness | 0.5 oz (18 μm) – standard |
| 1.0 oz (35 μm) – standard | |
| Other thicknesses available upon request | |
| Copper Foil Types | RTF – Low-roughness copper (standard) |
| Rolled copper foil | |
| 50Ω Embedded Resistor Copper Foil (NiP alloy, 0.2μm thickness, 50±5Ω/sq) | |
| Copper-clad or aluminum-clad versions available | |
| UL 94 V-0 flammability | Safety certified for critical applications |
| Standard PTFE processing | Compatible with standard PTFE PCB fabrication techniques |
| Bottom Solder Mask | None |
| Electrical Testing | 100% prior to shipment |
| Artwork Format | Gerber RS-274-X |
| Accepted Standard | IPC-Class-2 |
| Service Area | Worldwide |
Design Observations
This board (97.53 mm × 100.28 mm) features a moderate component count (21 components) with only 2 nets, suggesting a dedicated RF functional module. Key observations include:
40 mil (1.016 mm) dielectric thickness – Provides robust mechanical strength while maintaining controlled impedance characteristics
No solder mask – Preserves the ultra-low-loss characteristics of TFA294; solder mask would introduce additional dielectric loss
No silkscreen – Maintains a clean RF surface; avoids contamination
ENIG surface finish – Provides excellent solderability and flatness for RF connections
TFA294's low loss (Df ≈ 0.0010) – Critical for maintaining signal integrity at high frequencies
IPC-Class-2 compliance – Ensures reliability for commercial aerospace and defense applications
Manufacturing Process Highlights
Standard PTFE processing – TFA294 can be fabricated using standard PTFE PCB techniques
Excellent machinability – The material's mechanical properties support dense-hole and fine-line processing
Multi-layer capability – Suitable for multi-layer and backplane applications
100% electrical testing – Guarantees functional integrity of every board
Typical Applications
- Aerospace equipment, space, in-cabin equipment, aircraft;
- Microwaves, antennas, phase-sensitive antennas;
- Early warning radars, airborne radars, etc.;
- Phased array antennas, beamforming networks;
- Satellite communications, navigation;
- Power amplifiers.
TFA Series Product Family
TFA294 is part of a broader product family offering multiple Dk options:
| Model | Dielectric Constant (Dk) | Primary Application |
| TFA294 | 2.94 | General high-frequency, millimeter-wave, aerospace |
| TFA300 | 3 | High-frequency, antenna applications |
| TFA615 | 6.15 | Miniaturization, filters, couplers |
| TFA1020 | 10.2 | Extreme miniaturization, compact microwave components |
Note: TFA294 and TFA300 can be supplied with 50Ω embedded resistor copper foil for integrated resistor applications.
Conclusion
TFA294 from Taizhou Wangling Insulation Material Factory offers a compelling combination of aerospace-grade reliability, ultra-low loss, and exceptional frequency stability up to 77 GHz and beyond. With a dielectric constant of 2.94 ± 0.04, dissipation factor of 0.0010 at 10 GHz, and a TCDk of -5 ppm/°C, TFA294 delivers the performance required for the most demanding millimeter-wave, aerospace, and defense applications.
Key advantages include:
Aerospace-grade reliability – Radiation resistant, low outgassing, space-qualified
Ultra-low loss (Df = 0.0010) – Among the lowest in its Dk class
No glass fiber cloth – Eliminates "fiberglass effect"; isotropic electrical properties
77 GHz capability – Suitable for automotive radar and millimeter-wave communications
Excellent temperature stability – TCDk of -5 ppm/°C from -55°C to 150°C
CTE matched to copper (18/18/32 ppm/°C) – Reliable PTHs and dimensional stability
Low moisture absorption (0.03%) – Stable performance in all environments
Cost-effective alternative – Replaces similar Western materials with competitive pricing
Standard PTFE processing – Compatible with standard fabrication techniques
Whether used in spacecraft electronics, phased-array radar, or 77 GHz automotive sensors, TFA294 provides a reliable, high-performance foundation for the most demanding high-frequency circuit designs.
About Taizhou Wangling Insulation Material Factory
Taizhou Wangling Insulation Material Factory is an ISO 9001 registered company specializing in high-frequency PTFE ceramic composite substrates for aerospace, defense, and millimeter-wave applications. The TFA series represents the company's commitment to quality and performance, offering a competitive alternative to imported high-frequency materials.
TFA Series Product Offerings:
TFA294 (Dk 2.94) – General high-frequency, aerospace, millimeter-wave
TFA300 (Dk 3.0) – High-frequency, antenna applications
TFA615 (Dk 6.15) – Miniaturization, filters, couplers
TFA1020 (Dk 10.2) – Extreme miniaturization
Metal-Backed Options:
TFA294-AL – Aluminum-backed for heat dissipation
TFA294-CU – Copper-backed for shielding and thermal management
For detailed material certifications, custom thickness options, or panel size availability, please contact us -- an authorized TFA series distributor.
